Mechanical splice 250/900μm Kood:
MS201
|
Saadavus:
Laos
|
Kaal:
0.1234 kg/tk
|
|
|
|
|
|

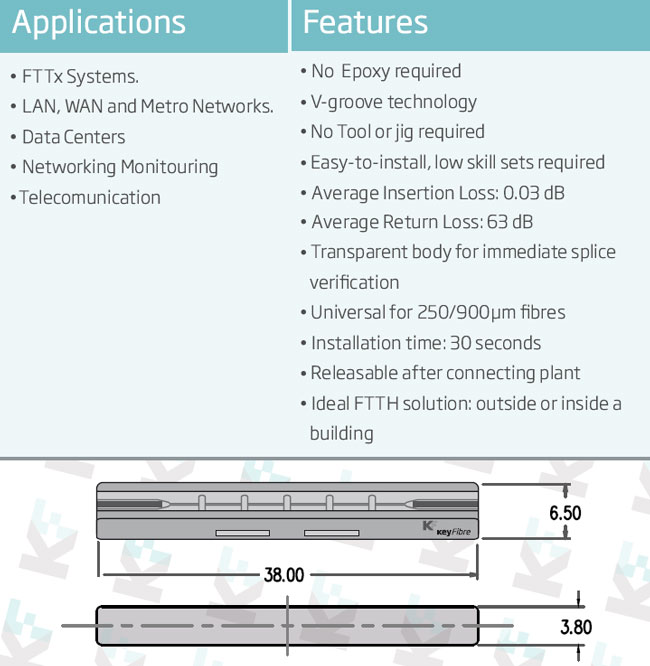

Mechanical splice 250/900μm
Improved Performance. Even Lower Loss now.
A Flat Cleave Technique with a Reflectance Performance of Grade 1 specifications >60dB.
Average values: IL 0.03DB, RL 63dB, using KeyCleave.
Upgraded Core Alignment.
In the trrictest sense, KeyQuick Mechanical Splice is a permanen connection made between two optical fibres for an indefinite period of time without movement.
MS201 is viable for analog signal transmission. For quicker connections, home drops and network applications.
Reducing Assembly Steps
To make installation even quicker and more economical, KeyFibre has reduced assembly steps. Same splicing procedure for 250 or 900 microns.
The unique with no need of Loss tester
The unique "light-design" functionality of KeyQuick whole range allows technicians to quarantee the connections using a VFL. No tester is needed to verify the loss.
|
|
|
