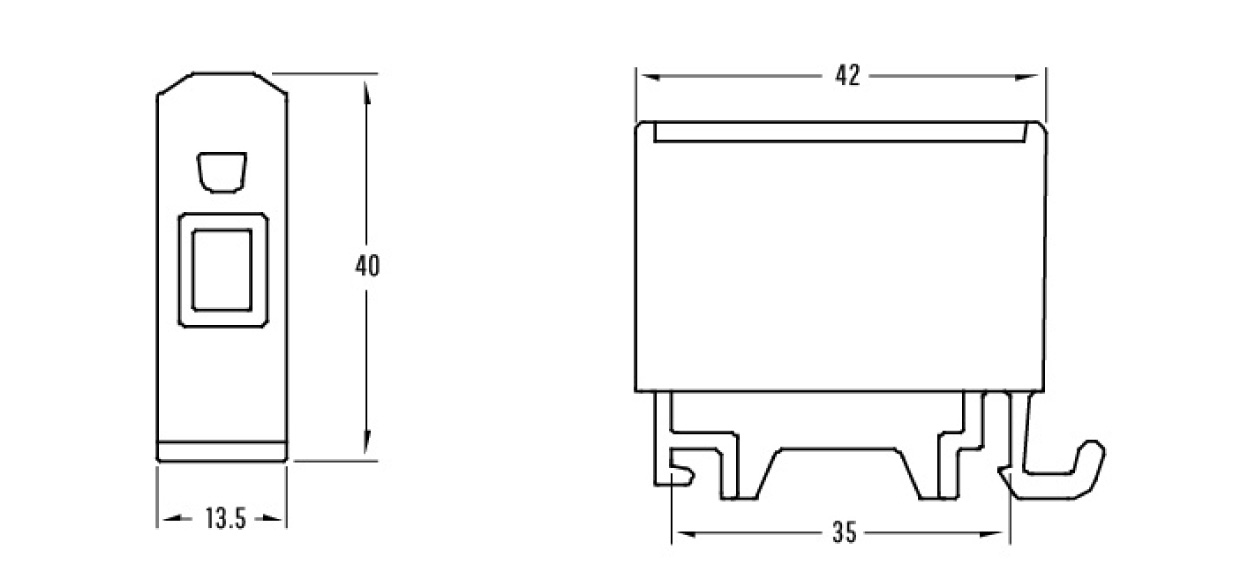

Hargnemisklemm Al/Cu UK16/1A, 1P (2holes) 1.5-16mm² 75/82A 1000VAC/ 1500VDC, Hex4 1.5Nm 1.5mm²/ 3.5Nm 2.5..6mm²/ 7Nm 10..16mm², TS35, hall Kood:
1914100
Hind
Tootja
:
|
Saadavus:
Laos
|
Kaal:
0.0225 kg/tk
|
Maht:
0 m3/tk
|
Hulgipakendi kogus:
20tk
|
|
|
|
| Name |
Terminal Block Al/Cu 1,5-16mm2, grey |
| Working temperature (ºC): |
max 80ºC |
| Housing: |
polyamide |
| Fastening: |
DIN-rail |
| Screw head: |
hexagon
|
| Screw head size: |
4 mm |
| Colour: |
grey |
| Nominal Insulation Voltage V: |
1000 V |
| Nominal Rated Current A: |
85A |
| Nominal Rated Current A: |
Cu 82 A, Al 75 A |
| Number of poles: |
1
Al/Cu 1.5-16 mm2 |
| Standard: |
EN 61238-1, EN 60947-7-2 |
| Nominal Tightening Torque Nm: |
1,5 Nm (1,5 mm2
3.5 Nm (2.5-6 mm2)
7 Nm (10-16 mm2)
|
|
|
|
